Cleanfix reversible fans are innovative devices that clean your radiator with powerful, clean air flow.
Unlike conventional hydraulic reversible fans with rigid wings, Cleanfix provides increased and optimal air flow during cleaning due to the precise alignment of the airfoil.

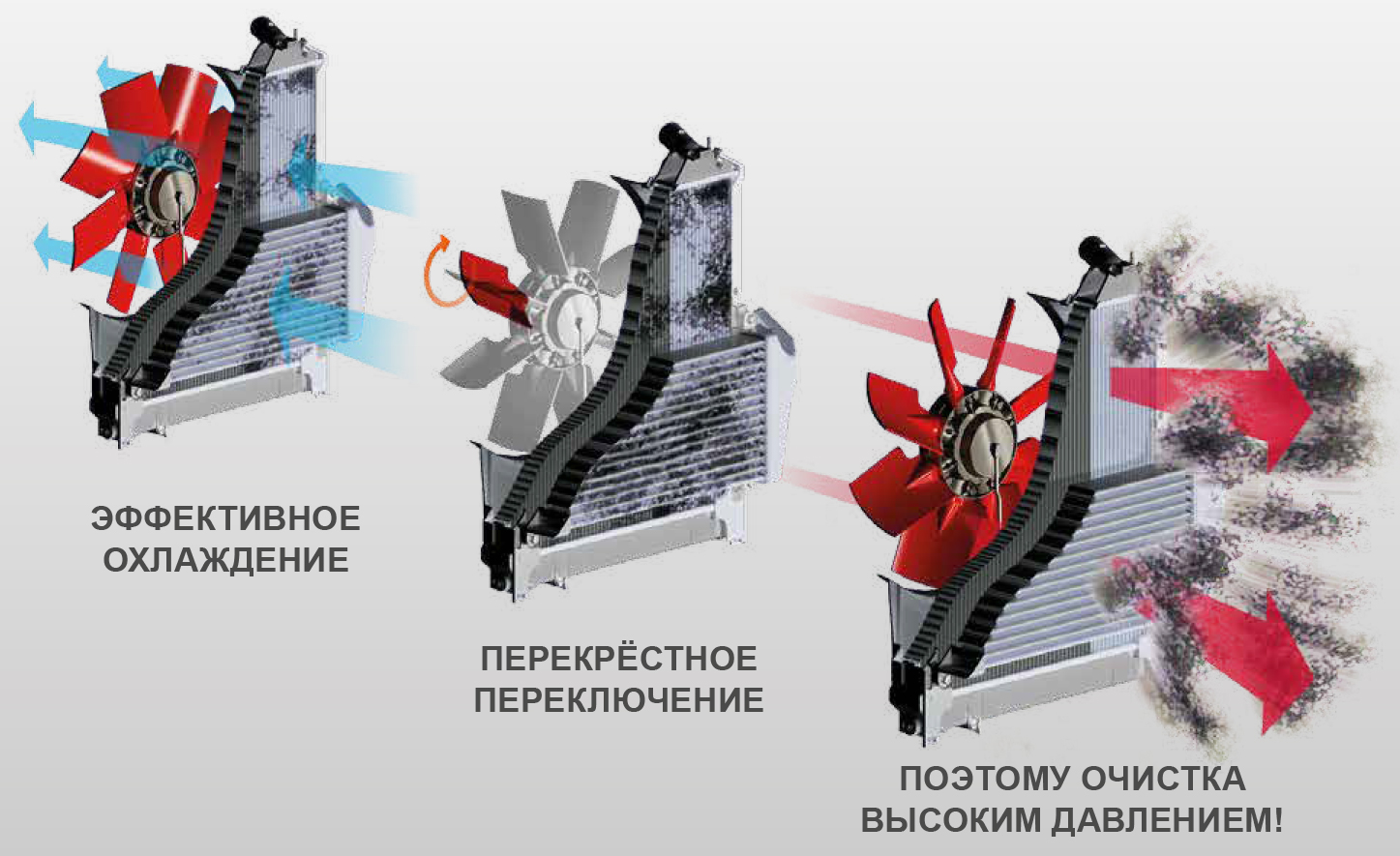

Cleanfix fan wings rotate around their axis - through a transverse position. This ensures that the blade profiles are always in the optimal position to generate maximum air pressure for efficient cooling and thorough radiator cleaning.
Cleanfix reversible fans are used in agricultural machinery, such as tractors, telehandlers, food mixers, combines. They are also used in construction machines (loaders, excavators, scrapers, forklifts) and even in snowmobiles to clean frozen screen surfaces.
Today, more and more radiators are being installed in modern commercial vehicles. The problem is that their fans quickly turn into vacuum cleaners, polluting radiators and suction filters. This results in additional costs of several thousand euros per year. With innovative switching fans that not only suck in air, but also clean the radiator with powerful, clean airflow, Cleanfix offers the perfect solution. Unlike conventional, hydraulic reversing rigid wing fans that use a change in direction of rotation to clean the radiator, the Cleanfix changeover fan provides increased and optimal airflow during cleaning by precisely aligning the airfoil rather than by changing the direction of rotation. Cleanfix fan wings rotate around their axis - through a transverse position! An ingeniously simple idea that ensures that the blade profiles are always in the optimal position to generate maximum airflow and pressure for efficient cooling and thorough radiator cleaning.
Powerful reversible fans effectively clean the radiator in dusty or dirty environments. They reliably remove grass and residues of grain, leaves, tree chips, sawdust, humus, soil and lime. Even the radiator grilles remain clean.
In this switchable fan, the wings are turned by compressed air or hydraulic oil. The return position is ensured by springs. If necessary, the cleaning process can be automated using a timer. Elastic CLEANFIX Flex tips on the wings, which increase the CLEANFIX SC air intake by 8-15%, allow you to reduce the fan speed and save even more fuel. This kit for CLEANFIX SC can also be installed as an option. Individual CLEANFIX solutions are possible for different types of equipment.

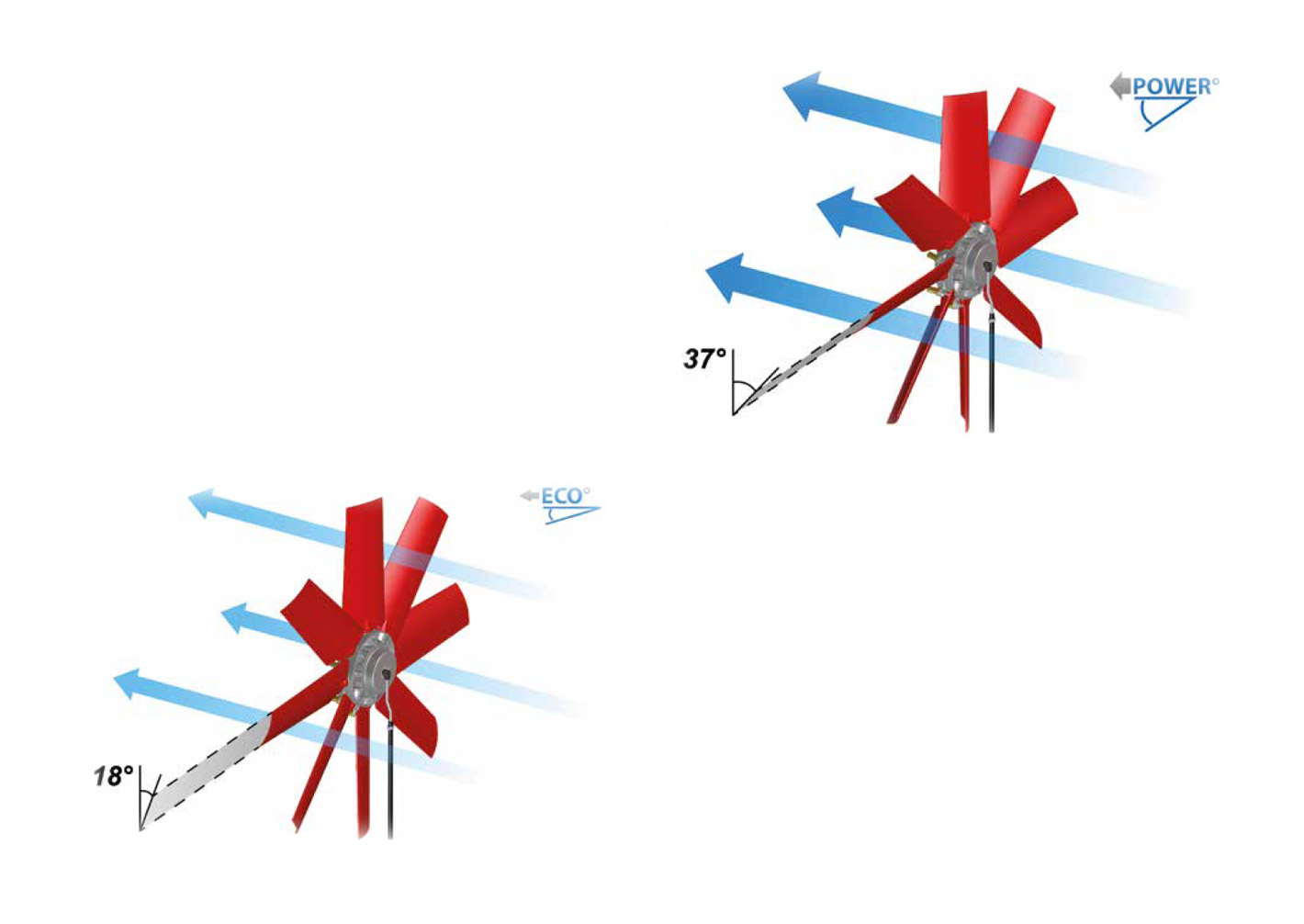

In addition to the switching function for cooling and cleaning, this series of fans offers variable blade angle adjustment - depending on the cooling required by the machine. No electronics. Without interfering with the engine electronics. Advantages: additional fuel savings and reduction in fan drive power costs by up to 60%. When using CLEANFIX Flex elastic tips on the blades, it is possible to reduce the rotation speed of the CLEANFIX VP fan and thus save even more fuel. You can also upgrade the CLEANFIX VP fan with an adapter flange. Customized solutions from CLEANFIX are possible.
The thermoelements for adjusting the wing angle are filled with wax components that have proven themselves to be excellent. At a certain temperature range, the wax expands, moving a small piston that turns the blades at an angle from flat to steep. Since all the wings are connected through a piston inside the hub, their movement is ensured. This gives the system the highest possible level of security.
The power consumption of a fan depends on the angle of its blades. Because Cleanfix VP automatically adjusts its wings to meet cooling requirements, it also automatically adjusts its energy consumption. With a flat wing angle, you can save up to 60% of power consumption.
